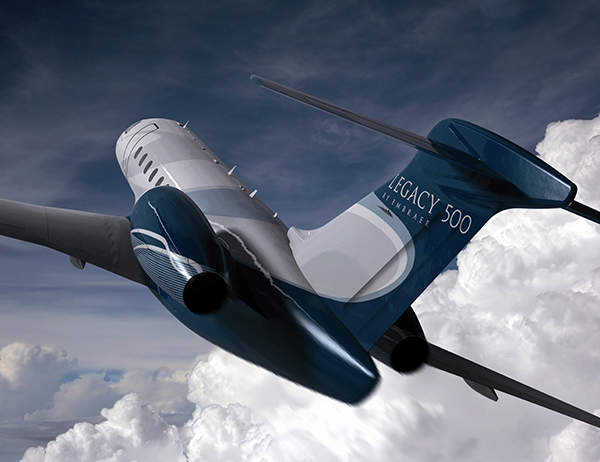

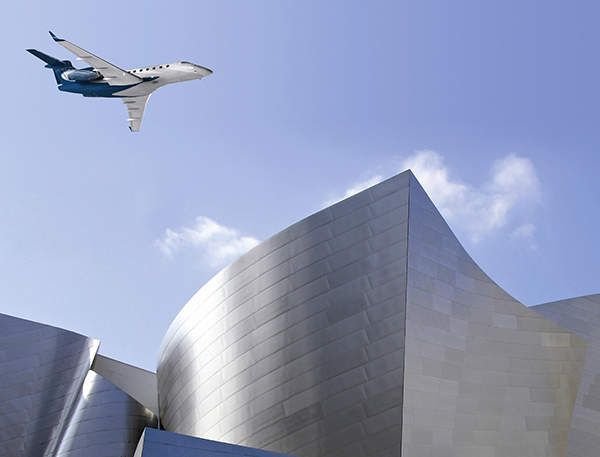

The Legacy 500 is a medium-sized business jet being developed by Embraer, a Brazilian aircraft manufacturer.

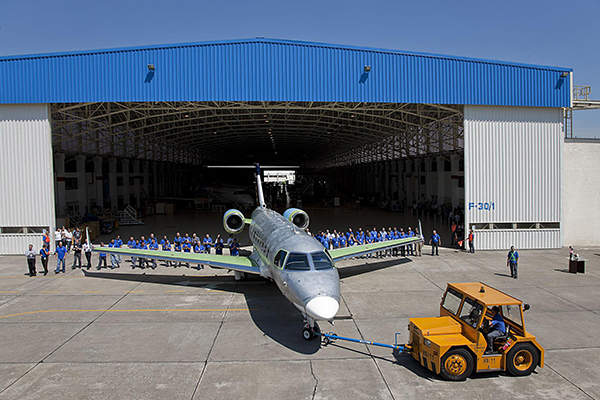

The engine test of the aircraft was completed in January 2012 and the maiden flight was in November 2012. The first prototype of the aircraft was rolled-out in December 2011. The second and third prototypes made their respective first flights in February and March 2013.
Recommended White Papers
Recommended Buyers Guides
The final assembly line of the Legacy 500 business jet is located at Embraer’s São José dos Campos facility in Brazil. Three prototypes of the aircraft have been constructed as of March 2013.
The Legacy 500 aircraft was granted type certification by the Brazilian Civil Aviation Agency in August 2014, with Federal Aviation Administration (FAA) certification following in October 2014.
European Aviation Safety Agency (EASA) certification for the aircraft was granted in Cologne, Germany, in December 2014. The aircraft entered service in October 2014.
Legacy 500 design
The Legacy 500 aircraft is being designed and developed along with Legacy 450 aircraft. It is constructed using effective aluminium alloy and composite material. The aircraft has three sections, which include the cockpit, centre fuselage and aft fuselage. The external dimensions of the aircraft include length of 20.52m (67ft 4in), height of 6.73m (22ft 1in) and wingspan of 20.24m (66ft 5in).
Orders and deliveries of Embraer’s aircraft
Vibroair Flugservice ordered one Legacy 500 aircraft in October 2008. Deliveries of the aircraft started in October 2014. The first delivery was made to an undisclosed Brazilian company.
Al Jaber Aviation (AJA) ordered four Legacy 500 aircraft in November 2008.

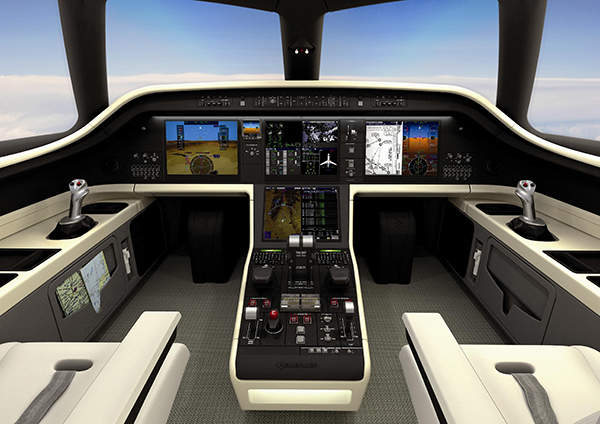

Cockpit of the medium-size business jet
The cockpit of the Legacy 500 is fitted with a Pro Line Fusion integrated avionics suite developed by Rockwell Collins.
The cockpit avionics include four high resolution 15in diagonal LCD displays. The avionics suite also includes advanced human-machine interface, with graphical flight planning capabilities. Other features of the avionics system include high resolution synthetic vision, integrated flight information system, electronic charts, enhanced maps and document reader.
The cockpit avionics also include dual advanced flight management systems, wide area augmentation system localiser precision vertical and required navigation performance capabilities. It also features traffic surveillance system and automatic dependent surveillance broadcast capabilities.

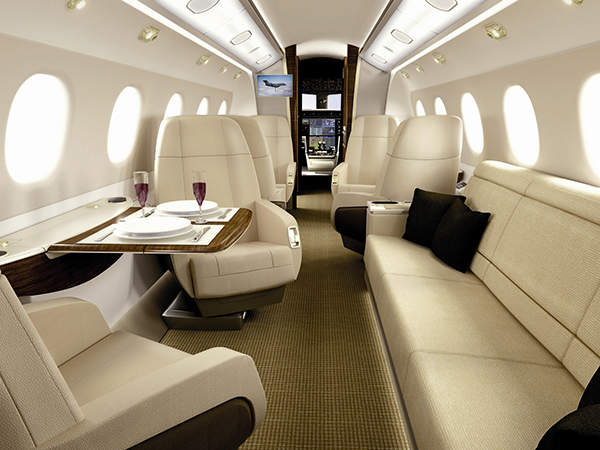

Cabin of the Legacy 500 business jet
The Legacy 500 has a spacious cabin, with a seating capacity for eight to 12 passengers in addition to two crew members. The dimensions of the cabin include a height of 1.82m, width of 2.10m and length of about 12.95m. The cabin design was provided by DesignworksUSA of BMW Group.
The cabin features a total baggage space of about 155ft³, which includes an internal baggage space of about 40ft³ and external baggage space of 110ft³. The cabin has a total of 14 windows, which are 13.1in-wide and 14.4in in height. The aircraft features the best cabin pressurisation at 6,000ft.
The cabin has LED lighting, 26.5in-wide seats, a side-facing divan which can be converted into a bed and a 4gal hot/cold water reservoir. It also features a kitchen with microwave and convection ovens, wood veneer cabinetry and flexible stone for flooring and cabinet tops.
The aircraft cabin also features entertainment and communication equipment including a single Blu-ray player, 17in Rosen HD monitor, HDMI ports and Apple Store, which allows downloads for iPhones and iPads of passengers.
Engine and performance of Embraer’s Legacy 500
The Legacy 500 is powered by two HTF 7500E turbofan engines manufactured by Honeywell. Each engine is capable of producing about 7,036lb of thrust. The engine offers fuel-efficiency as well as reduced NOx emissions. The fuel tank capacity of the aircraft is 2,500gal.
The aircraft has a range of 3,125nm. It has a maximum operational altitude of 45,000ft. It has a high cruise speed of 863km/h at Mach 0.83 speed. The aircraft has a service ceiling of 14,021m (46,000ft). It has a takeoff weight of 19,051.20kg and payload capacity of 2,177.28kg.
The takeoff and landing distances of the Legacy 500 are 1,245m and 2,122m respectively.
