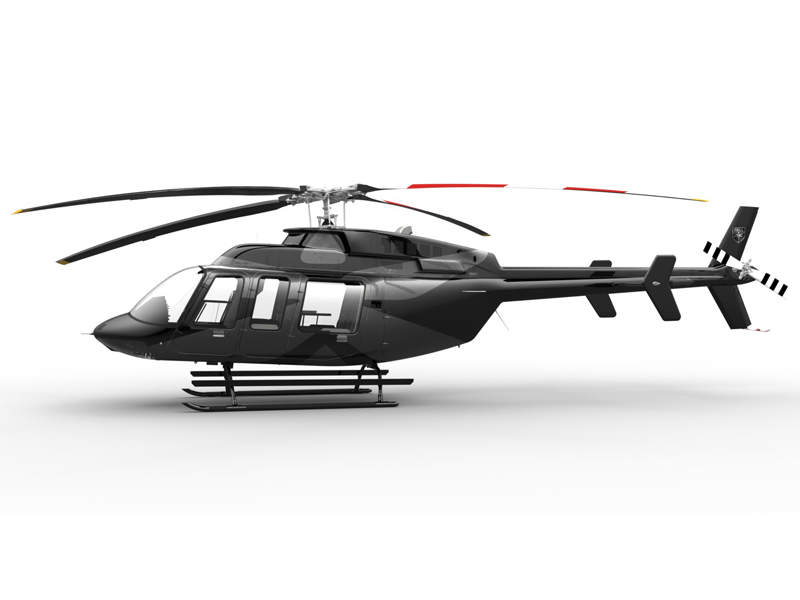

Bell 407GXi is a multi-role utility aircraft being offered by Bell (formerly Bell Helicopter), a subsidiary of Textron. Developed as an upgraded version of the Bell 407GXP helicopter, the rotorcraft is expected to replace its predecessor.
The helicopter was unveiled by Bell at the Heli-Expo 2018 in February 2018. It is the first helicopter launched by the company after its rebranding as Bell. The rotorcraft received certification from Transport Canada in January 2018.
Recommended White Papers
Recommended Buyers Guides
Deliveries of the Bell 407GXi helicopters are scheduled to begin in Q2 2018.
Bell 407GXi design details
The modernised version of Bell 407GXP combines new interior design with enhanced payload capacity, without compromising on quality.
The forward fuselage of the helicopter is an aluminium honeycomb and carbon graphite structure, while the cabin is a semi-monocoque structure made of carbon fibre composites. The tail boom of the helicopter integrates horizontal stabilisers and vertical fin, tail rotor hub and blades.
The main rotor, fitted to a flex beam hub, has four fibreglass blades, while the semi-rigid tail rotor is fitted with two blades. Landing gear is of a tubular skid type with replaceable skid shoes.
The helicopter has an empty weight of 1,224kg and can carry up to 2,772kg of external load. It has the capacity to carry a maximum useful load of 1,043kg.
The modular design of the helicopter enables it to perform corporate, energy, parapublic, and helicopter emergency medical service (HEMS) missions.
Flight deck and avionics
The Bell 407GXi helicopter is fitted with a Garmin G1000H integrated avionics suite, featuring 10.4in high-definition LCD screens and primary flight displays (PFDs). It features advanced processing equipment, which provides necessary information to increase the situational awareness, while easing the workload of pilots.
The hyperspectral imaging system (HSI) mapping technology on-board the cockpit offers maps and astute insights to the pilots.
The flight deck further incorporates a traffic information system (TIS), helicopter terrain avoidance warning system (HTAWS), tail rotor camera displays, and Garmin helicopter synthetic vision technology (HSVT).
The on-board power situation indicator (PSI) provides precise information of the power settings. Intercom system is integrated with the engine indicating and crew alerting system (EICAS), which provides audio alerts during an emergency.
Navigation systems on-board the Bell 407GXi include a very high-frequency communication (VHF COM) transceiver, glideslope receivers GPS / WAAS receiver, and a GTX 335R Extended Squitter (ES) Mode S transponder.
Cabin features of the aircraft
The helicopter features a spacious 2.4m³ cabin, which offers seating for a pilot and six passengers in standard configuration. The cabin configuration can be altered as required and the seats can be customised in grey, black, blue, and two-tone leather colours.
The ergonomic design of the cabin allows maximum sunlight into the cabin and increases the surrounding view and visibility for the passengers. The helicopter is further equipped with soundproofing technology for reducing the noise levels in the cabin.
The modular cabin can be installed with mission-specific equipment such as a 155cm bi-fold door for easy loading and unloading of patients. The capability to operate in extreme weather conditions at high altitudes to deliver enhanced surveillance makes it the best fit for parapublic missions.
Engine and performance
The Bell 407GXi helicopter is powered by a Rolls-Royce 250-C47E/4 engine. The turboshaft engine features a dual digital full authority digital electronic control (FADEC) system. It develops a maximum take-off power of 643kW (862shp).
The main and auxiliary tanks on-board the helicopter can carry approximately 555l of fuel.
The maximum cruise speed of the helicopter is 246km/h, while the maximum range is 624km. The helicopter has a maximum endurance of four hours.
